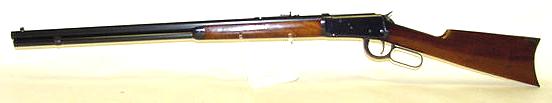

Winchester 1894 Lever-Action (pre 64)
The etc. represents M55 & M64. Some M92 large caliber magazine parts & screws do interchange.
On mainsprings, if there is no designation, the part will refer to a straight grip version.
These parts are for the pre 1964 made guns, under s/n 2,700,000
Total Views: 39276 ,
Parts available for this firearm
| Model | Part Number | Part Name | Price | Photo |
|---|---|---|---|---|
| 53, 65, 92, | 1394 | Carrier Screw, 2 required | * 7.00 |
Photo not available
|
| 55, 64, 94, | 1494 | Carrier Spring | * 22.00 |
Photo not available
|
| 55, 64, 94, | 1594 | Carrier Spring Screw | * 7.00 |
Photo not available
|
| 55, 64, 94, | 1294 | Carrier, improved style, 30-30 size | * 88.00 |
Photo not available
|
| 55, 64, 94, | 1894 | Cartridge Guide Screw, 2 required | * 7.00 |
Photo not available
|
| 55, 64, 94, | 1994 | Extractor | out |
Photo not available
|
| 55, 64, 94, | 2094 | Extractor Pin | * 5.00 |
Photo not available
|
| 55, 64, 94, | 3094 | Finger Lever Link Screw | * 5.00 |
Photo not available
|
| 55, 64, 94, | 2894 | Finger Lever Pin | * 5.00 |
Photo not available
|
| 55, 64, 94, | 2994 | Finger Lever Pin Stop Screw | * 7.00 |
Photo not available
|
| 55, 64, 94, | 2594 | Firing Pin | * 26.00 |
Photo not available
|
| 55, 64, 94, | 4094 | Firing Pin Striker | * 14.00 |
Photo not available
|
| 55, 64, 94, | 4194 | Firing Pin Striker Stop Pin | * 5.00 |
Photo not available
|
| 55, 64, 94, | 3564 | Forearm Tip Screw, rifle, 2 required | * 7.00 |
Photo not available
|
| 55, 64, 94, | 3794 | Friction Stud | * 14.00 |
Photo not available
|
| 55, 64, 94, | 3994 | Friction Stud Stop Pin | * 5.00 |
Photo not available
|
| 94, | 8794 | Front Band Screw | * 7.00 |
Photo not available
|
| 55, 64, 94, | 4594 | Hammer Screw | * 7.00 |
Photo not available
|
| 55, 64, 94, | 4794 | Link Pin | * 7.00 |
Photo not available
|
| 55, 64, 94, | 4894 | Link Pin Stop Screw | * 7.00 |
Photo not available
|
| 55, 64, 94, | 5094.005 | Locking Bolt Assembly, .005 oversize to correct headspace | * 66.00 |
Photo not available
|
| 55, 64, 94, | 5094.010 | Locking Bolt Assembly, .010 oversize to correct headspace | ` 66.00 |
Photo not available
|
| 55, 64, 94, | 5094.015 | Locking Bolt Assembly, .015 oversize to correct headspace | * 66.00 |
Photo not available
|
| 55, 64, 94, | 11094 | Magazine Follower, older machined type | * 14.00 |
Photo not available
|
| 55, 94, | 12094 | Magazine Plug Screw Takedown, 1 required | * 7.00 |
Photo not available
|
| 55, 64, 94, | 11994 | Magazine Plug Screw, long | * 7.00 |
Photo not available
|
| 55, 94, | 12094 | Magazine Plug Screw, short | * 7.00 |
Photo not available
|
| 94, | 15694NL | Magazine Plug, no lip, slotted, uses long screw | * 17.00 |
Photo not available
|
| 94, | 11394X | Magazine Plug, no lip, smooth, uses long screw | * 14.00 |
Photo not available
|
| 94, | 15694WL | Magazine Plug, with lip & slot, uses short screw | * 21.00 |
Photo not available
|
| 55, 64, 94, | 12394 | Magazine Ring Pin, solid frame | * 5.00 |
Photo not available
|
| 55, 94, | 17892 | Magazine Ring, no pin, rifle, takedown | out |
Photo not available
|
| 55, 64, 94, | 12194 | Magazine Ring, pinned, rifle, solid frame | * 37.00 |
Photo not available
|
| 55, 64, 94, | 5594 | Mainspring Screw | * 7.00 |
Photo not available
|
| 55, 94, | 5694 | Mainspring Strain Screw | * 7.00 |
Photo not available
|
| 94, | 10794 | Mainspring, 1/2 pistol grip | * 42.00 |
Photo not available
|
| 94, | 26492 | Mainspring, 1/2 pistol grip set trigger version | * 46.00 |
Photo not available
|
| 55, 94, | 10694 | Mainspring, straight grip | * 40.00 |
Photo not available
|
| 55, 94, | 17994 | Mainspring, straight grip set trigger version | * 46.00 |
Photo not available
|
| 55, 64, 94, | 6464A | Peep Sight Plug Screw, for rear tang, 1 required | * 7.00 |
Photo not available
|
| 94, | 15294 | Rear Band Screw, for 20″ carbine | * 7.00 |
Photo not available
|
| 55, 64, 94, | 7194 | Sear | * 27.00 |
Photo not available
|
| 55, 64, 94, | 7494 | Sear & Safety Latch Spring Screw | * 5.00 |
Photo not available
|
| 73, 86, 94, 95, | Fig 3ASY | Sling Ring Assembly, ring and stud assembled, # 14 x 30 threads | * 22.00 |
Photo not available
|
| 73, 86, 94, 95, | Fig 3S | Sling Ring Stud, #14 ( .235 ) x 30 threads | * 14.00 |
Photo not available
|
| 73, 86, 92, 94, | Fig 3R | Sling Ring, saddle ring | * 7.00 |
Photo not available
|
| 55, 64, 94, | 7094 | Spring Cover Screw | * 7.00 |
Photo not available
|
| 55, 64, 94, | 6994 | Spring Cover, loading gate cover | out |
Photo not available
|
| 55, 94, | 16694 | Upper Tang Screw, longer for tang sight | * 8.00 |
Photo not available
|
| 55, 94, | 16494 | Upper Tang Screw, rear tang screw, straight grip | * 8.00 |
Photo not available
|
