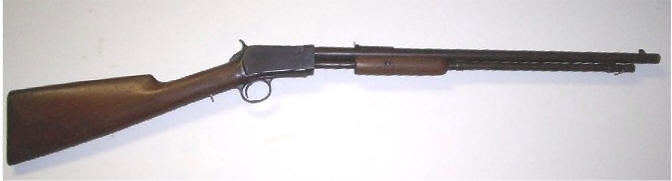

Winchester Pump-Action Rimfire
Note– our magazine tubes, either inside or outside can be used interchangeably with the originals.
Many of these models use interchangeable parts, if so, they may be listed in the earliest model
Total Views: 40053 ,
Parts available for this firearm
| Model | Part Number | Part Name | Price | Photo |
|---|---|---|---|---|
| 61, | 361 | Action Handle Slide Screw | 5.00 |
Photo not available
|
| 06, 90, | 5790 | Action Slide Handle Escututeon | 4.00 |
Photo not available
|
| 62, 62A, | 462A | Action Slide Handle Screw | 5.00 |
Photo not available
|
| 62, 62A, | 362A | Action Slide Handle Screw Escututeon | 4.00 |
Photo not available
|
| 06, 90, | 690 | Action Slide Handle Screw, forearm screw | 5.00 |
Photo not available
|
| 61, | 9361 | Assembling Screw | 15.00 |
Photo not available
|
| 06, 62, 62A, 90, | 862A | Assembling Screw Bushing | 5.00 |
Photo not available
|
| 06, 62, 62A, 90, | 562A | Assembling Screw, takedown screw | 20.00 |
Photo not available
|
| 61, | 9361 | Assembling Screw, takedown screw | 19.00 |
Photo not available
|
| 06, 62, 62A, 90, | 2762 | Carrier Lever Spring | 6.00 |
Photo not available
|
| 06, 62, 62A, 90, | 2862A | Carrier Lever Spring Screw | 4.00 |
Photo not available
|
| 06, 62, 62A, | 2962A | Cartridge Stop, 22 S, L, LR | 14.00 |
Photo not available
|
| 61, | 4761 | Extractor Plunger, upper | 4.00 |
Photo not available
|
| 06, 62, 62A, 90, | 3162A | Extractor, 22 RF | out |
Photo not available
|
| 90 WRF, | 4590 1/2 | Extractor, 22 WRF | out |
Photo not available
|
| 61, | 5361 | Firing Pin | 28.00 |
Photo not available
|
| 06, 62, 62A, 90, | 3462A | Firing Pin Spring | 5.00 |
Photo not available
|
| 62A, | 3562A | Firing Pin Stop | 10.00 |
Photo not available
|
| 06, 62, 90, | 4990 | Firing Pin Stop | 15.00 |
Photo not available
|
| 62A, | 3662A | Firing Pin Stop Pin, 2 required | 4.00 |
Photo not available
|
| 06, 62, 90, | 5090 | Firing Pin Stop Screw, 2 required | 4.00 |
Photo not available
|
| 62A, | 3362A | Firing Pin, .070″ diameter tip with chisel tip | 38.00 |
Photo not available
|
| 06, 90, | 4790 | Firing Pin, .110 diameter flat tip | out |
Photo not available
|
| 61 Magnum, | 7061M | Magazine Assembly Inside, 22 WMRF | out |
Photo not available
|
| - - - | 44275 | Magazine Assembly inside, model 255, 275, 22 magnum caliber | out |
Photo not available
|
| 90 WRF, | 6690 | Magazine Assembly, Inside, 22 WRF, .375 diameter | out |
Photo not available
|
| 1890, 1906, 62, 62A, | 4962A | Magazine inner assembly 22 Short, Long, Long Rifle | 28.00 |
Photo not available
|
| 61, | 6961 | Magazine inner assembly, 22 short, long, long rifle | 28.00 |
Photo not available
|
| 06, 61, 62, 62A, 90, | 5762A | Magazine Ring Pin | 4.00 |
Photo not available
|
| 06, 61, 62, 62A, 90, | 5562A | Magazine Ring, Front, Plain | out |
Photo not available
|
| 06, 61, 62, 62A, 90, | 5562A OVS | Magazine Ring, Front, Plain, oversized dovetail | out |
Photo not available
|
| 06, 90, | 26090 | Magazine Ring, Front, slotted for tee shaped retainer | 25.00 |
Photo not available
|
| 06, 61, 62, 62A, 90, | 26190 | Magazine Ring, Rear, pinned | out |
Photo not available
|
| 06, 90, | 6190 | Magazine Tube Outside, 22 RF, 11 round opening | 25.00 |
Photo not available
|
| 06, 61, 62, 62A, 90, | 4762AS | Magazine Tube Outside, 22 RF, 14 round opening | 25.00 |
Photo not available
|
| 1890, 1906, 61, 62, 62A, | 4662A | Magazine Tube Outside, 22 Short, | 25.00 |
Photo not available
|
| 06, 62, 62A, 90, | 4662G | Magazine Tube Outside, 22 Short, Gallery Slot | 25.00 |
Photo not available
|
| 61 Magnum, | 7261M | Magazine Tube Outside, 22 WMRF | 24.00 |
Photo not available
|
| 61 WRF, | 7261 | Magazine Tube Outside, 22 WRF | 24.00 |
Photo not available
|
| 90 WRF, | 6290 | Magazine tube Outside, 22 WRF | 25.00 |
Photo not available
|
| 06, 90, | 7890 | Mainspring | 38.00 |
Photo not available
|
| 06, 90, | 5594 | Mainspring Screw | 5.00 |
Photo not available
|
| 06, 90, | 8290 | Mainspring Strain Screw | 5.00 |
Photo not available
|
| 90, | 8090 | Mainspring, half pistol grip | 40.00 |
Photo not available
|
| 06, 90, | 6464A | Peep Sight Plug Screw, for tang sight, 1 required | 5.00 |
Photo not available
|
| 275, 61, 62, 62A, | 2CH | Rear Sight Elevator, high, most 22’s | 4.00 |
Photo not available
|
| 61, 62, 62A, | 2C | Rear Sight Elevator, standard, most 22’s | 4.00 |
Photo not available
|
| 06, 62, 62A, 90, | 6462A | Slide Cover | out |
Photo not available
|
| 06, 62, 62A, 90, | 6562A | Slide Cover Screw | 4.00 |
Photo not available
|
| 06, 62, 62A, 90, | 7494 | Trigger Spring Screw | 4.00 |
Photo not available
|
| 06, 62, 90, | 9790 | Trigger Spring, flat type | 14.00 |
Photo not available
|
| 06, 90, | 10090 | Upper Tang Screw, pistol grip | 6.00 |
Photo not available
|
| 06, 90, | 10190 | Upper Tang Screw, pistol grip, for peep | 8.00 |
Photo not available
|
| 06, 62, 62A, 90, | 9990 | Upper Tang Screw, straight grip | 5.00 |
Photo not available
|
| 06, 90, | 10290 | Upper Tang Screw, straight grip, for peep | 6.00 |
Photo not available
|
